STL available here: https://than.gs/m/1417285

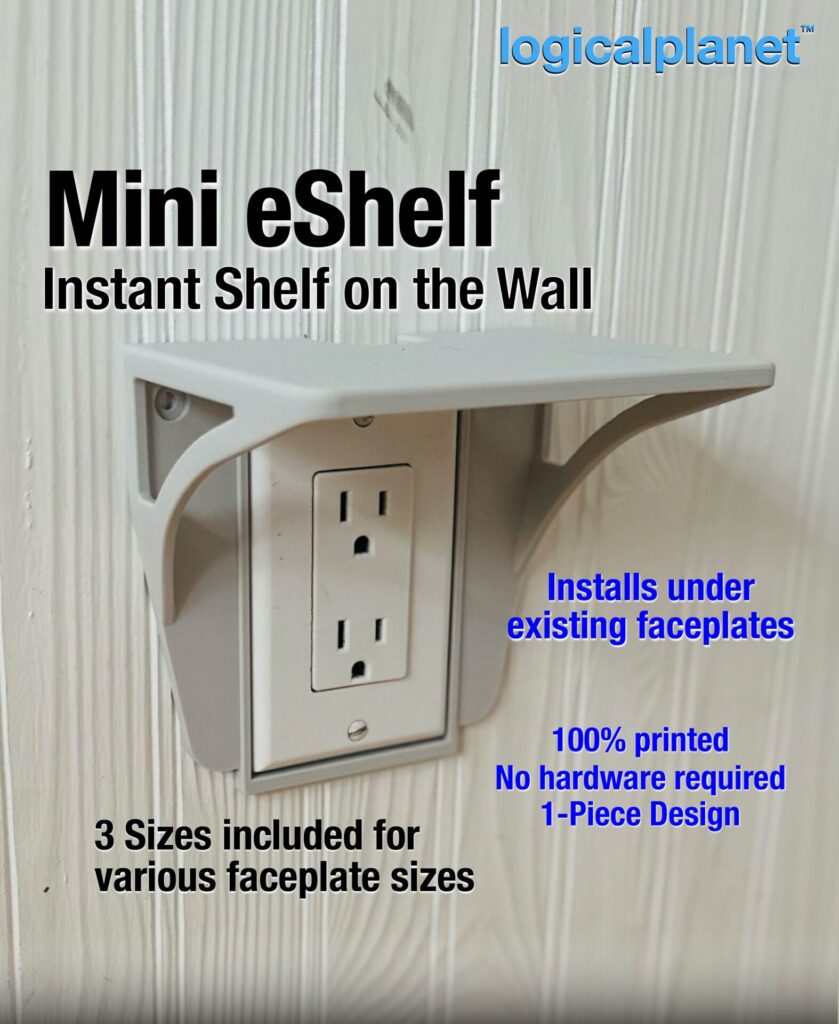

As anyone who follows me knows, I have a line of faceplate accessories called WallMatePlate that allows you to get extra functionality out of your electrical outlet and wall switch plates. But I stumbled across this idea on a shopping site and I thought it was quite clever in its simplicity. So I designed my own. A simple shelf that attaches to North American-style wall plates to create more storage!!
It is a super simple 1-piece print. And, it attaches by simply placing it behind a wall plate. The existing wall plate screws hold the wall plate and the Mini eShelf in place with considerable strength. Definitely adequate enough for small electronics or similar.

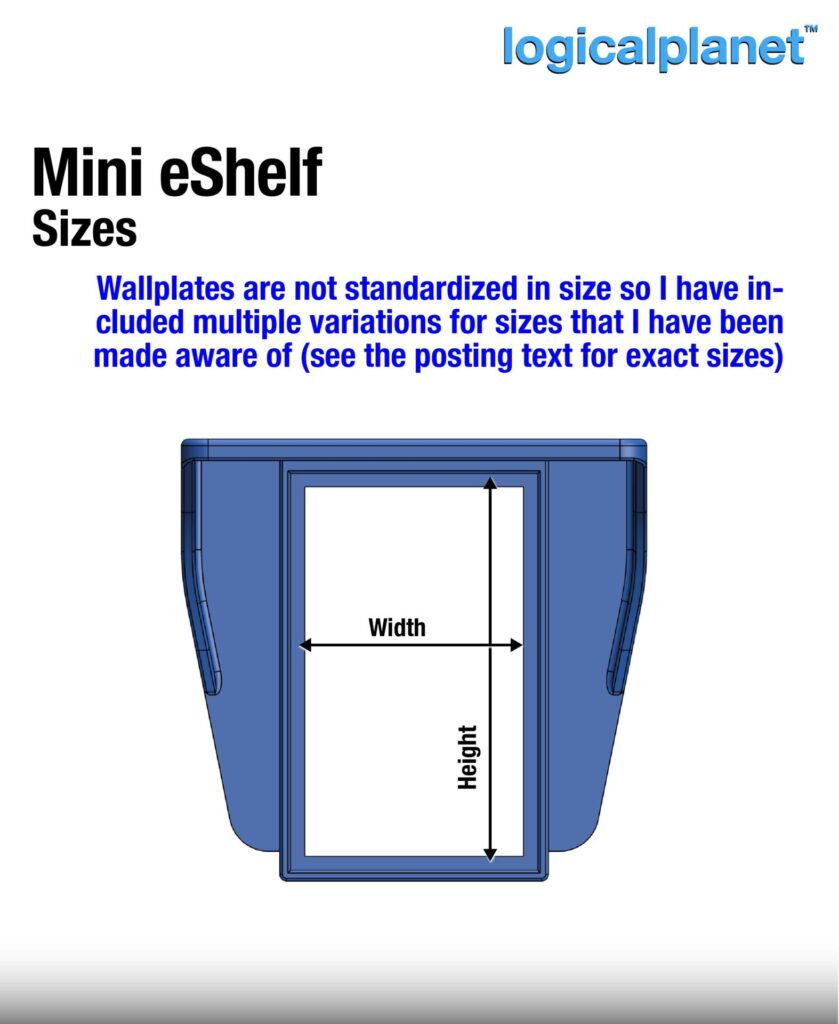

A complication I discovered after designing my first one and getting a few followers to test it was, not all wall plates are the same size. So I have created a few size variants to hopefully allow it to work for most people.

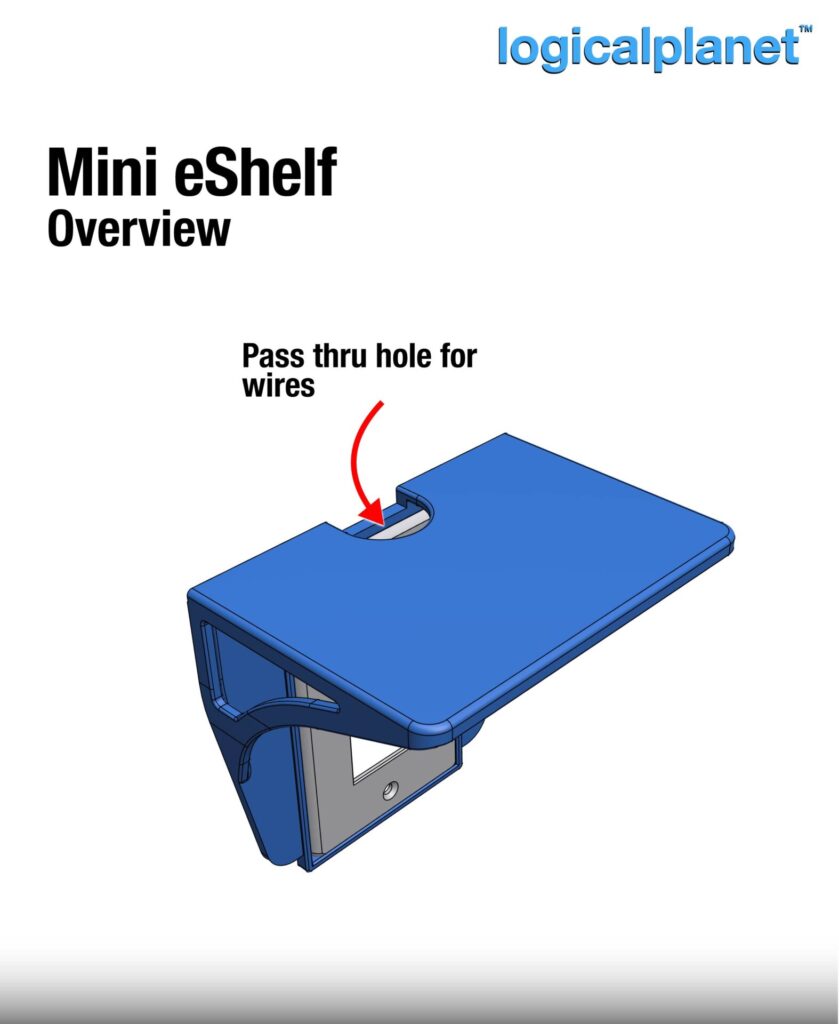

On the top back centre of the shelf is a recess (pass through hole) so that electrical wires can be container when using the Mini eShelf for charger or similar activities.
Print Settings

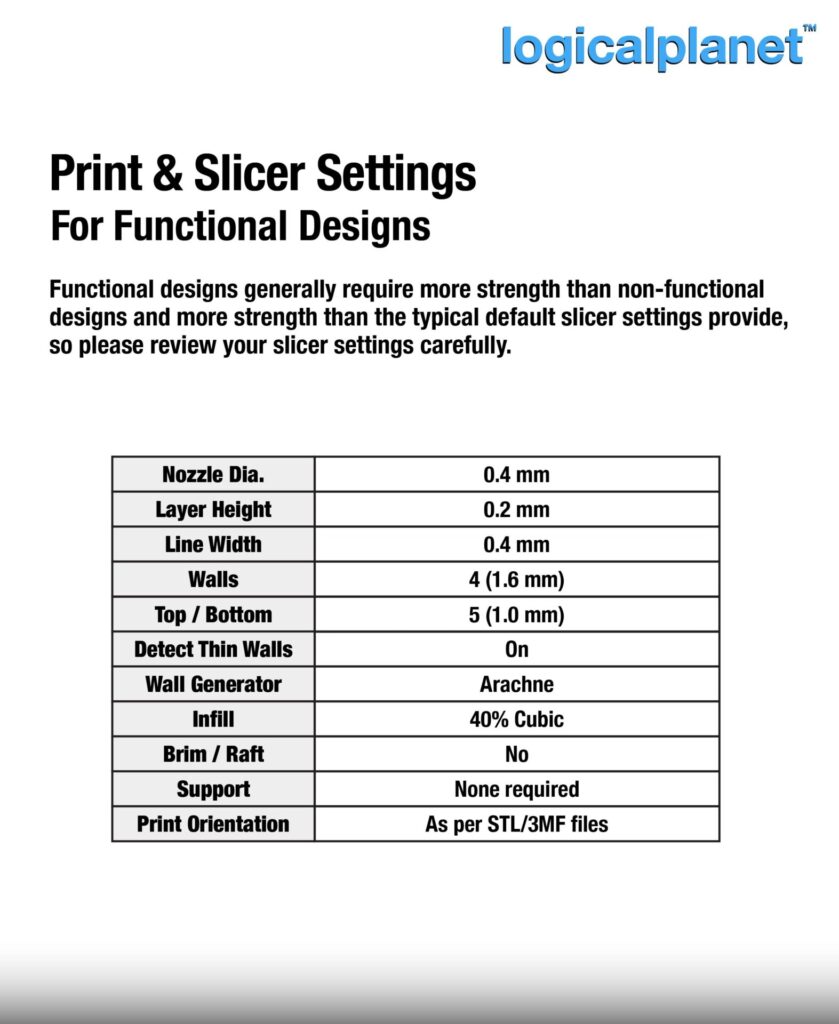

Functional designs (such as this one) generally require more strength than non-functional designs and more strength than the typical default slicer settings provide, so please review your slicer settings carefully.
This product was designed for a 0.4mm nozzle and a 0.2mm layer height. For best results, I suggest the following:
Assembly and Installation Notes

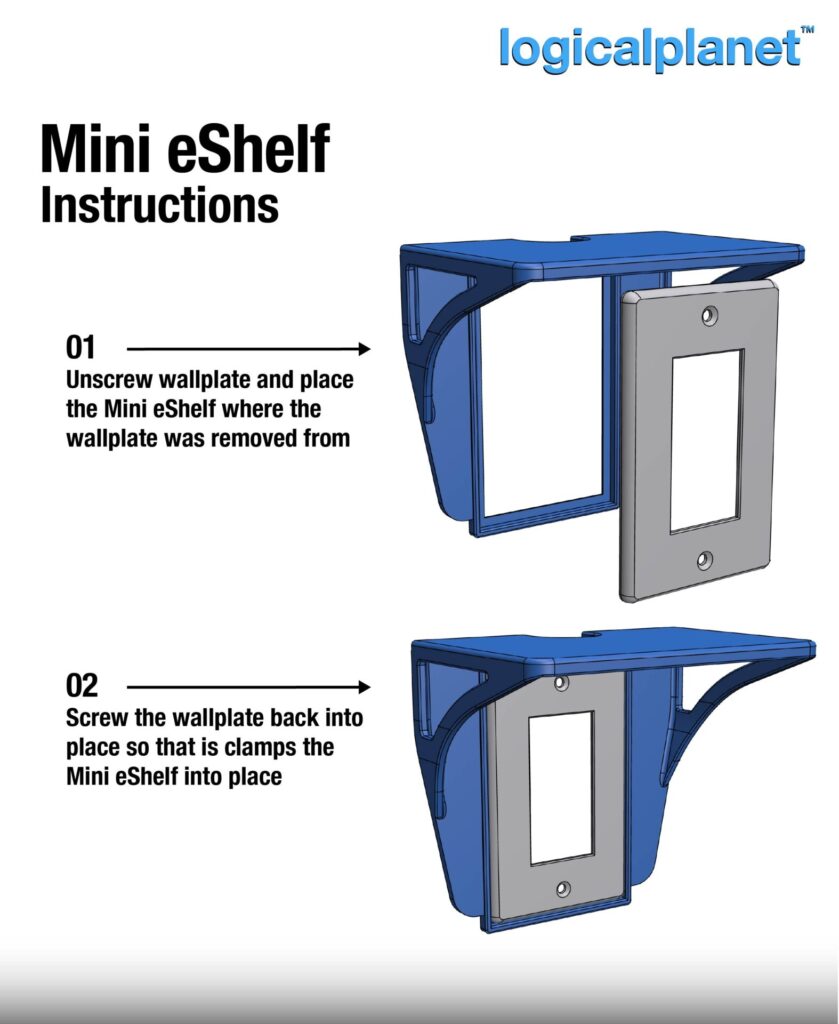

No assembly is required. It is ready to go right off the print plate. And, installation is a breeze. Simply unscrew your existing wall plate and then place the Mini eShelf behind it. Screw the original wall plate back into place. That’s it!!
