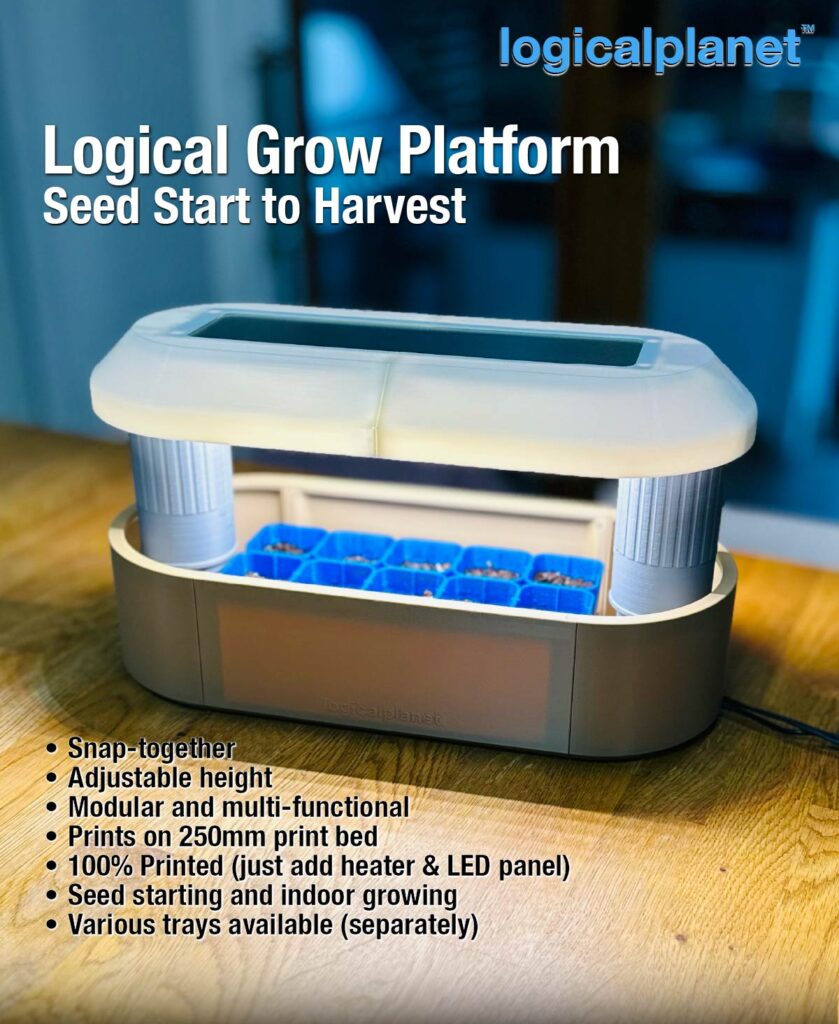

A modular, fully 3D-printed growing system that scales with your plants — from seed start to thriving indoor growth.
I like to grow herbs and vegetables for cooking, and this year I am adding Thai peppers and jalapenos. My plan is to smoke the jalapenos to make chipoltes. I can’t wait, but I need to get an early start on these peppers in our colder climate. And, so I have created an indoor seed starting and growing platform. Later, I will ty to use this for growing some herbs indoors, and I will also apply some of my hydroponic experience to make an insert for hydroponic growing.
Click here to download STL (Affiliate Link)
Every growing season I found myself juggling trays, heat mats, lights balanced on boxes, and awkward height adjustments as seedlings shot up faster than expected. It worked — but it was messy, unstable, and never quite dialed in.
The Logical Grow Platform (LGP) was designed to solve that problem in a clean, modular, fully printable way.
Instead of building a temporary setup every spring, the LGP creates a dedicated growing platform that holds your seed trays, integrates optional bottom heat, supports a common LED grow panel, and adjusts smoothly as your plants grow — all while staying compact enough to print on a standard 250mm bed.
It’s a system meant to grow with you, not something you outgrow in two weeks.
What It Is & How It Works

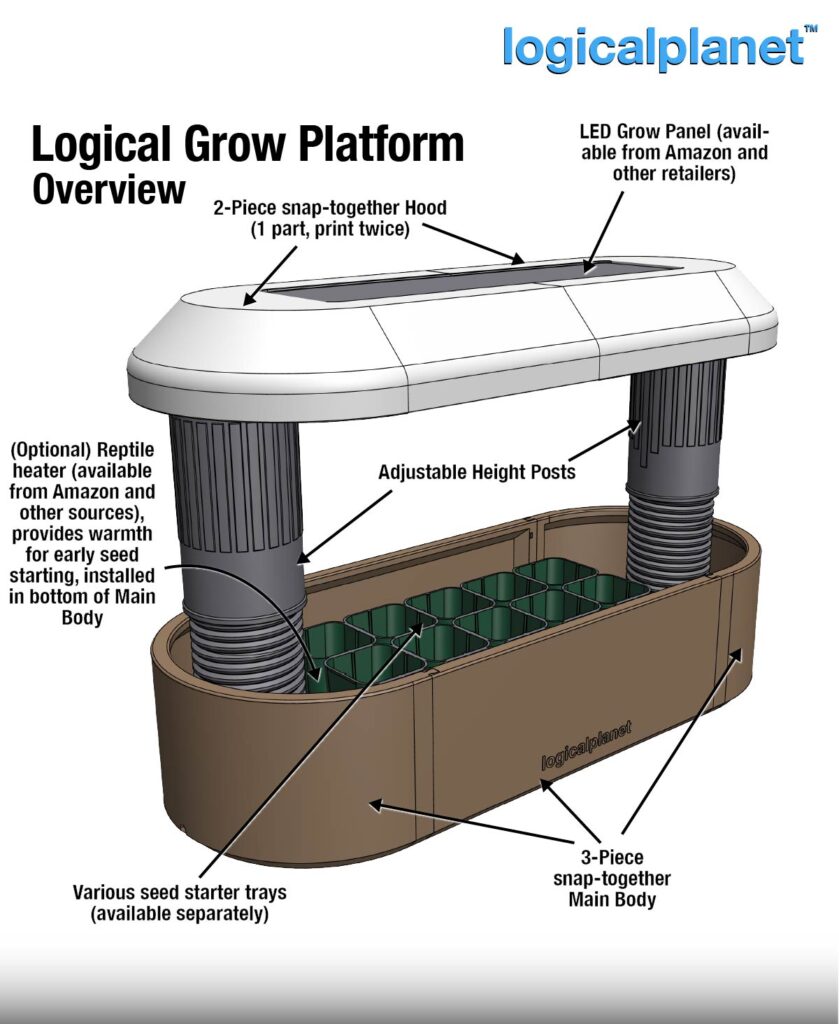

At its core, the LGP is a snap-together main body that holds seed starting trays inside a raised platform, with two adjustable threaded posts that support a removable light hood above.

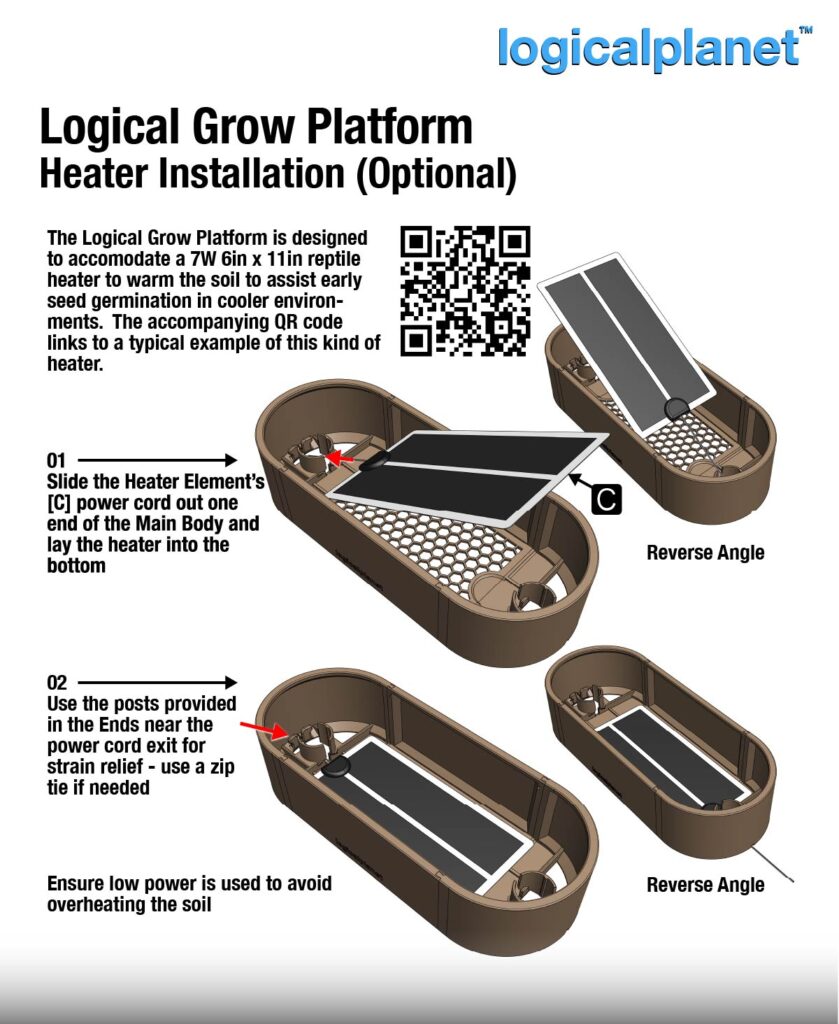

The hood holds a standard aluminum LED grow panel, while the base can optionally house a low-power reptile-style heater for bottom warmth during germination.
As seedlings emerge and stretch upward, you simply rotate the posts to raise the light — keeping an optimal distance without stacking books or rebuilding your setup.
Everything is modular:
• Trays drop in and swap out easily
• The hood lifts off instantly for watering or transplanting
• Height adjusts smoothly with precise control
Key Parts & Mechanisms
The LGP is built around a few carefully designed functional elements.
Snap-Together Main Body
The base assembles from interlocking pieces using tongue-and-groove joints and internal latches. It locks rigidly while still allowing disassembly if needed.

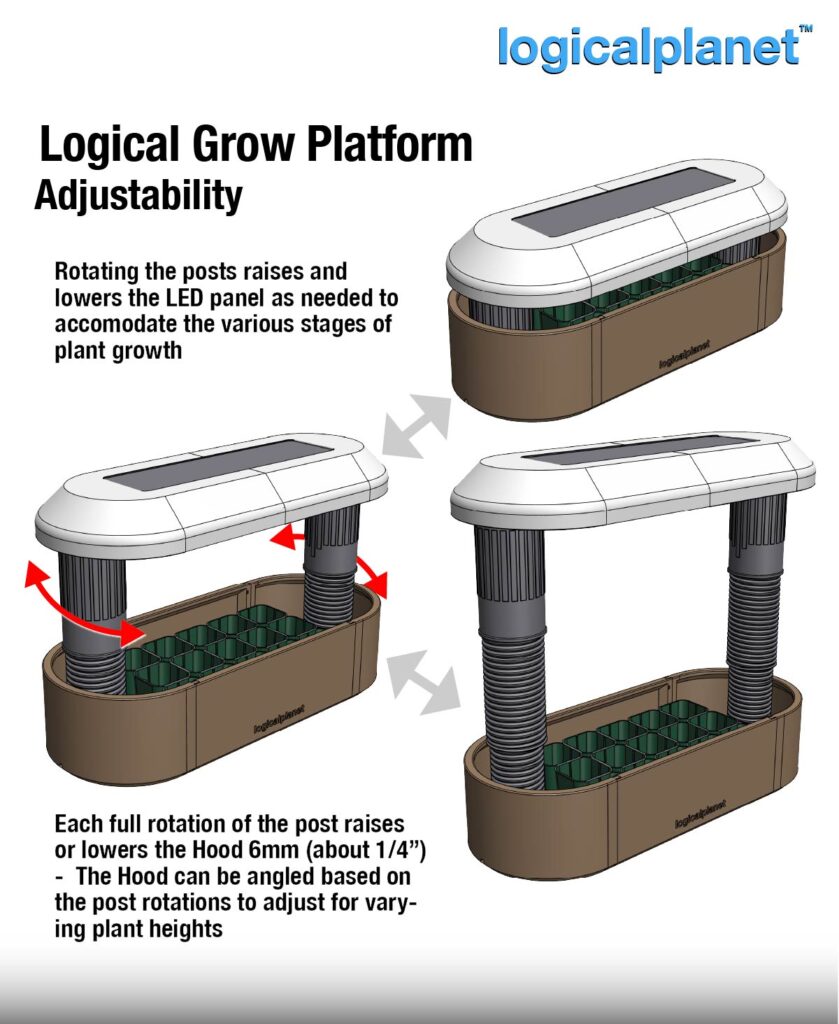

Adjustable Threaded Posts
Each post raises or lowers the hood smoothly with every rotation — about 6mm (roughly 1/4”) per turn.
An extended grip rib acts as a visual rotation marker so you can keep the hood perfectly level if you want precise alignment.
The posts can also be printed mirrored if you prefer counter-rotating motion instead of both turning the same direction.
Two-Piece Snap Hood
The hood prints in two identical halves that slide together over the LED panel and lock underneath with printed clips — no hardware required.
Integrated Cable Strain Relief
Both the hood and base include built-in cord management points to protect and route power cables cleanly.

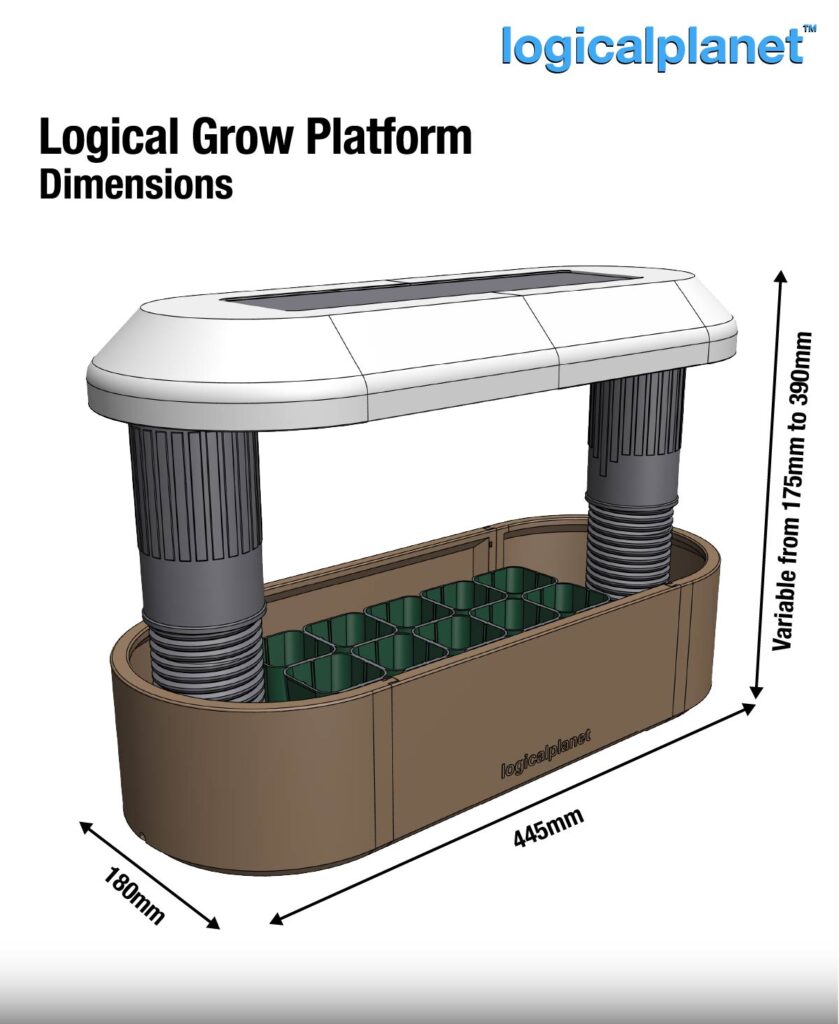

Size & Dimensions
Despite being a complete growing platform, the LGP stays compact enough for shelves, desks, and indoor grow spaces.
The footprint is roughly 445mm long by 180mm wide, with height adjustable from about 175mm up to nearly 390mm depending on post position.
It comfortably fits multiple Logical Grow trays while remaining stable and easy to move.

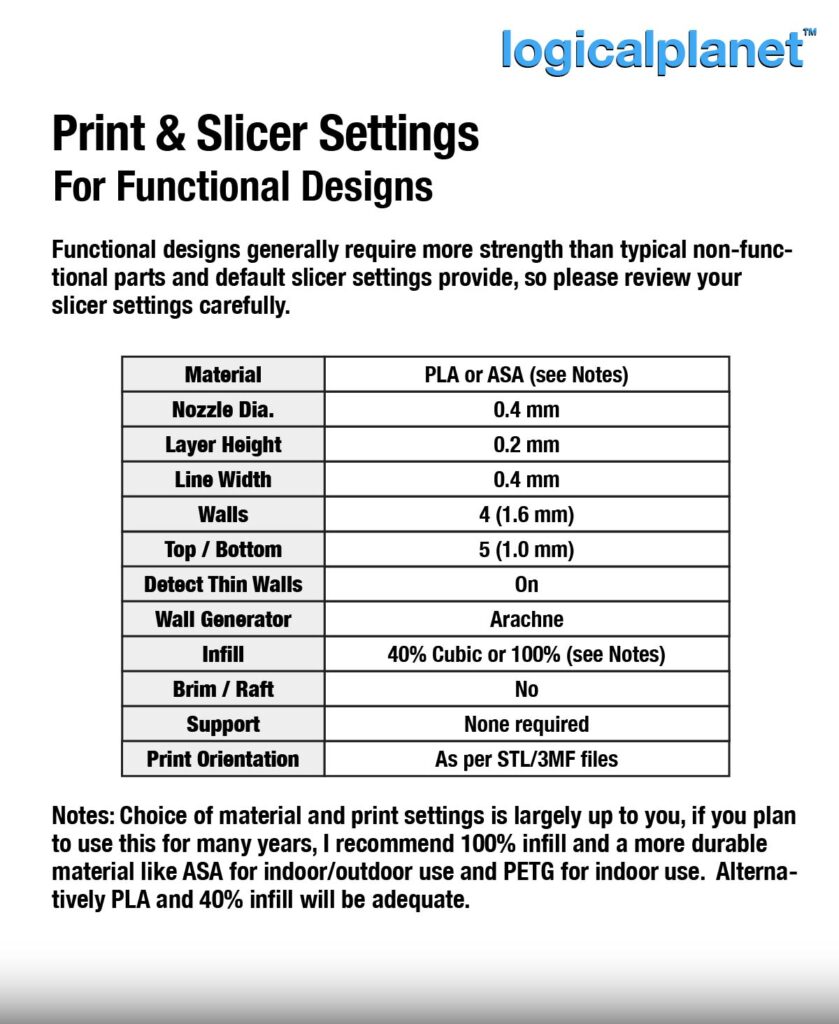

Printing Notes & Recommended Settings
The Logical Grow Platform is designed as a functional print — strength matters more than cosmetic perfection.
Recommended settings focus on durability:
• 0.4mm nozzle
• 0.2mm layer height
• Thick walls and solid top/bottom layers
• 40% cubic infill for general use or 100% for maximum longevity
PLA works well for indoor use, while PETG or ASA are ideal for higher heat or long-term durability.
Everything prints support-free in strength-optimized orientations.

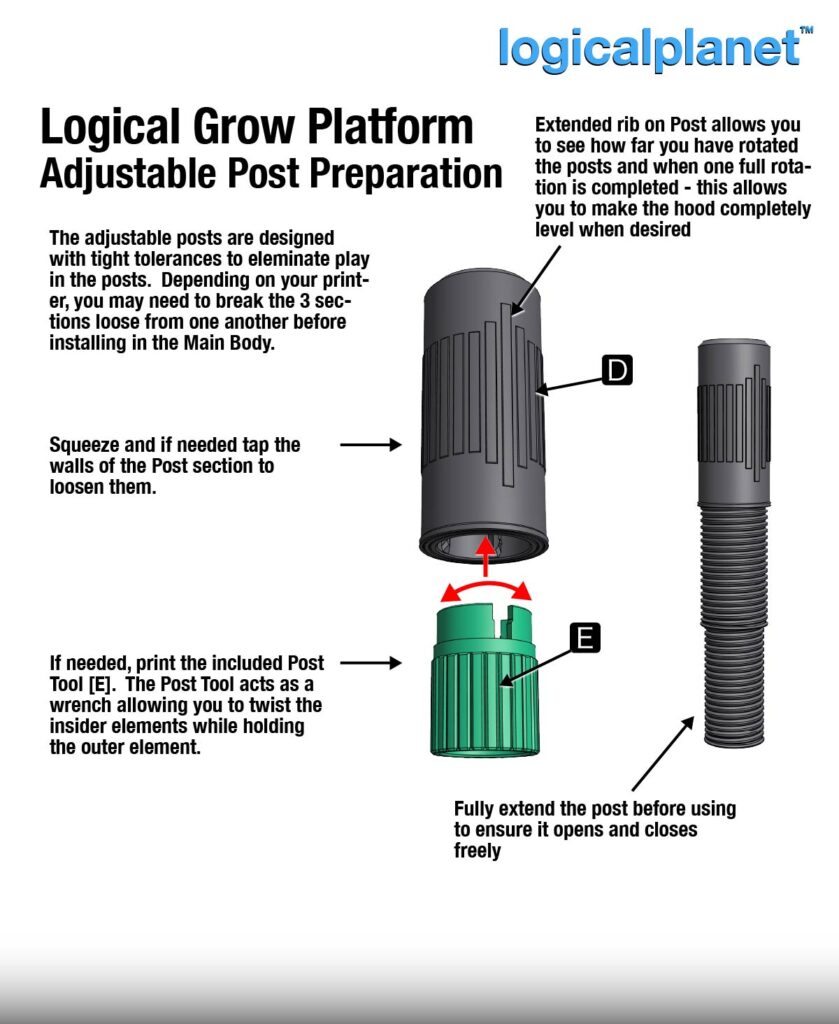

Post-Print Setup & Motion Release
Because the adjustable posts are printed with tight tolerances to eliminate wobble, they may need a quick break-in.
This is done by gently squeezing or tapping the post sections, then fully extending and retracting them once or twice until motion becomes smooth.
An included Post Tool acts as a small wrench to help rotate the internal elements if needed.
Once loosened, the movement becomes effortless and precise.
Assembly
Assembly is entirely snap-fit — no screws, glue, or hardware required.

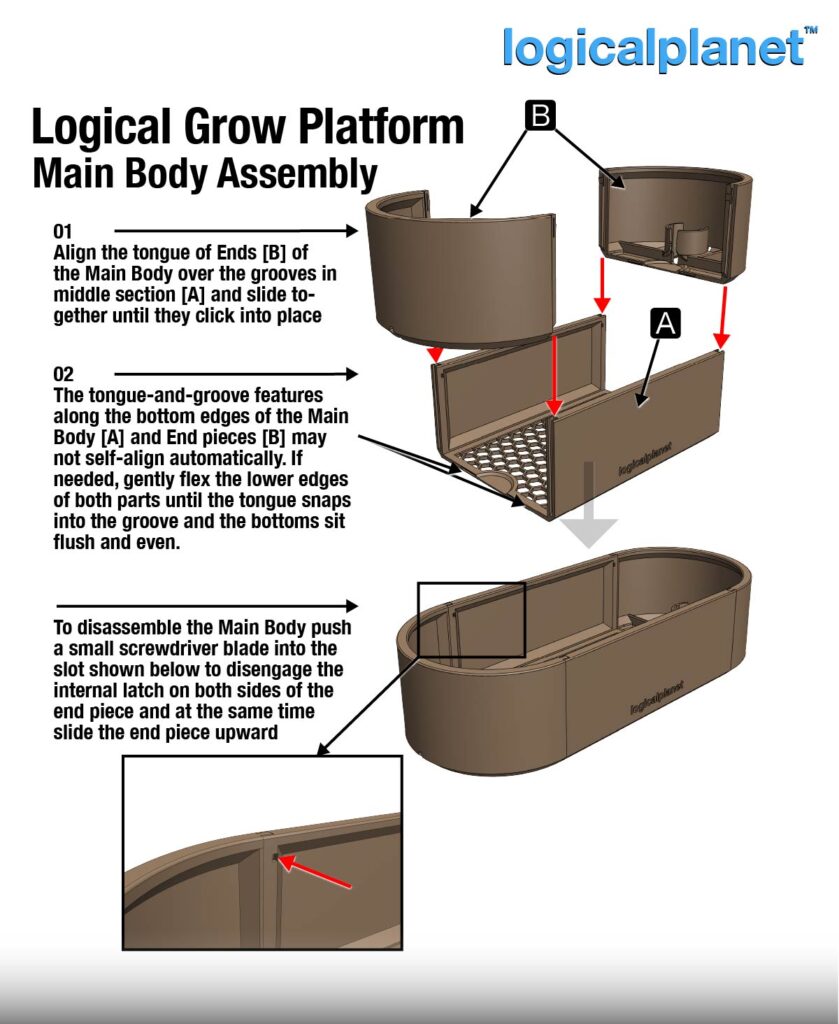

Main Body
The end pieces slide into the center section and click into place using built-in latches.
If the bottom tongue-and-groove features don’t perfectly self-align, a gentle flex will seat them flush.

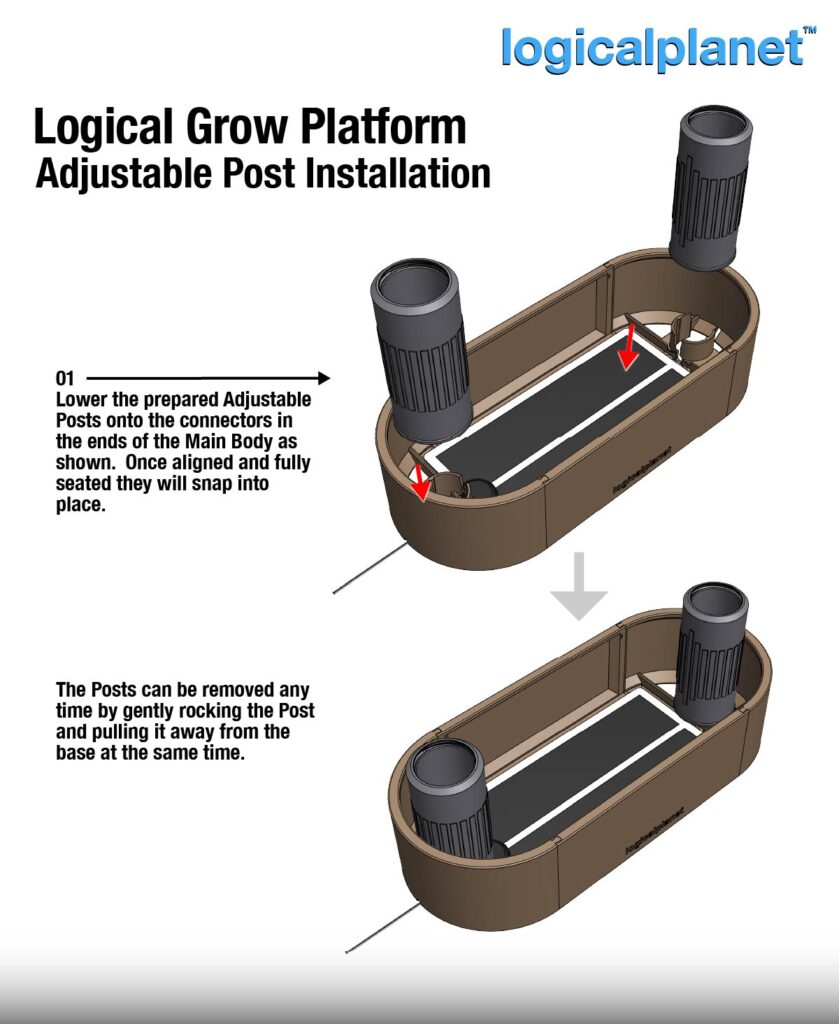

Adjustable Posts
Prepared posts press into the connectors in each end of the base and snap securely.

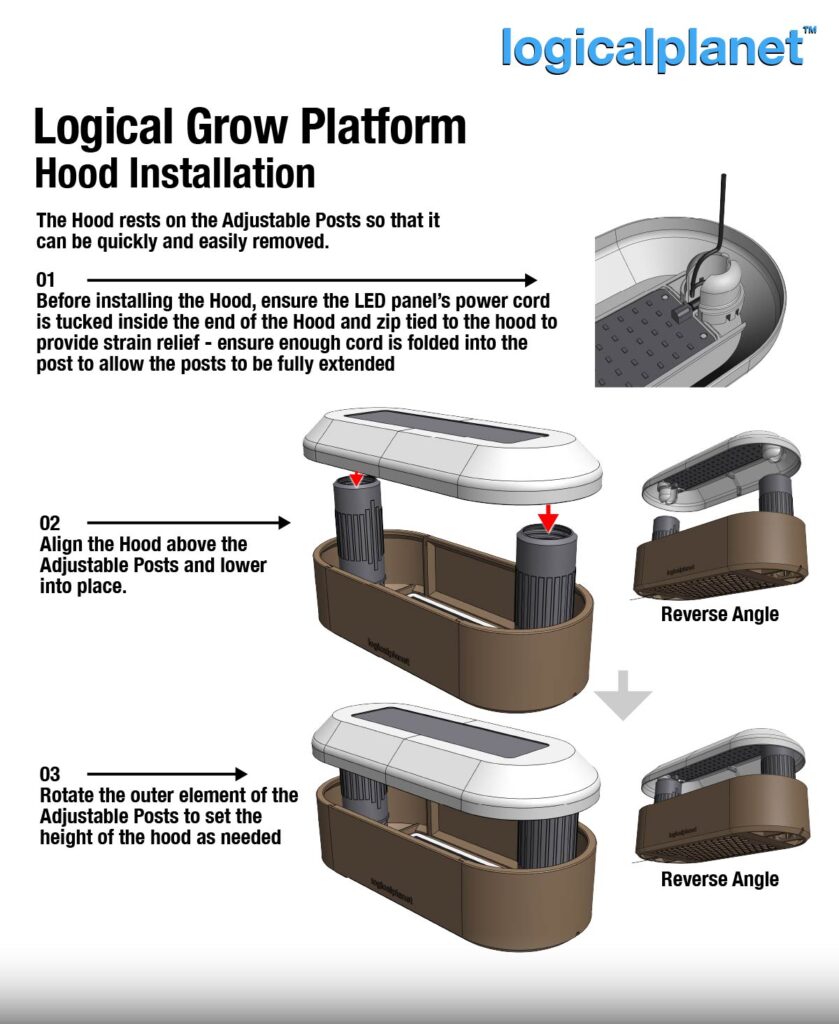

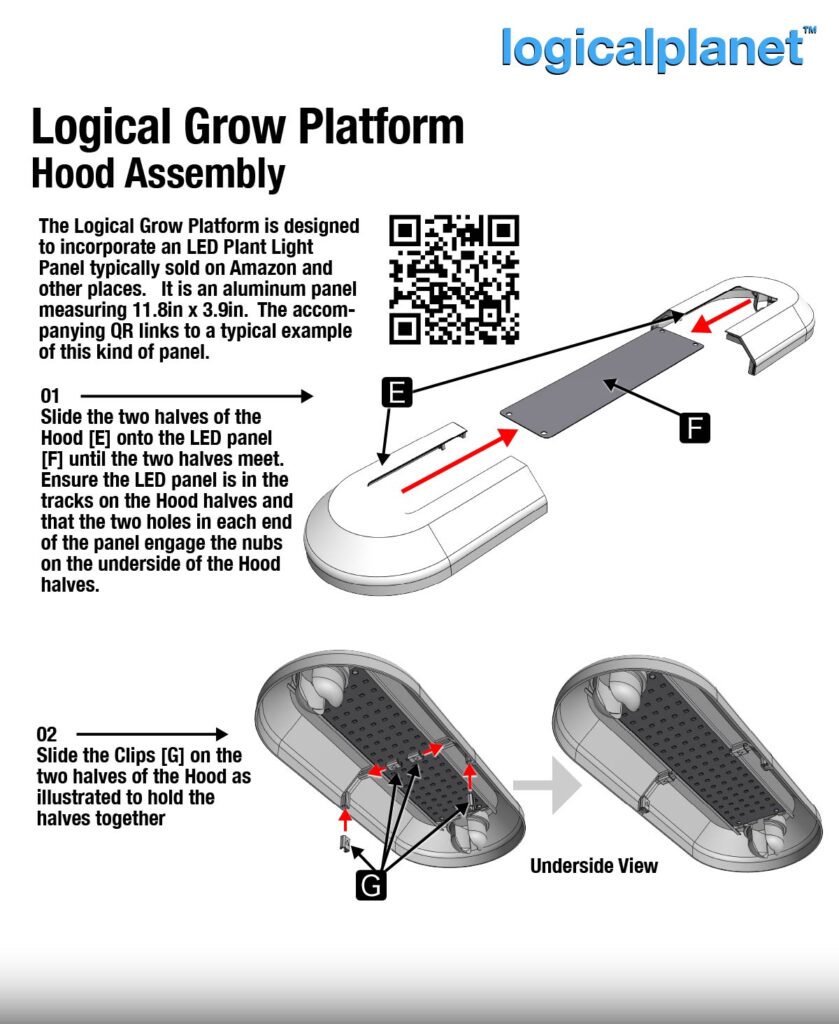

Hood
The two hood halves slide onto the LED panel and lock together underneath using printed clips.
The hood then rests directly on the adjustable posts for quick removal.
Everyday Use & Operation
Using the LGP quickly becomes second nature.
Start seeds in your trays, drop them into the base, and optionally add bottom heat for faster germination.
Once sprouts appear, lower the hood close to the seedlings for strong early growth. As plants stretch, rotate the posts to raise the light smoothly.
The hood lifts off instantly for watering, thinning, or transplanting.
Everything stays organized, stable, and perfectly positioned through every growth stage.
Why This Design Exists
The Logical Grow Platform was created to replace the unstable pile-of-stuff grow setups most of us end up using.
It’s about:
• Clean organization
• Smooth mechanical adjustment
• Modular expansion
• Turning seed starting into a proper system
It also forms the foundation of the broader Logical Grow ecosystem — with interchangeable trays, accessories like filling funnels and reusable plant markers, and future modules designed to scale from germination through indoor growing.
Like all LogicalPlanet designs, it’s built to be practical, durable, and satisfying to use.
