Stronger roots, cleaner planting, and a reusable way to start healthier seedlings in compact modular formats.
Every growing season seems to start the same way — stacks of flimsy plastic seed trays, soil everywhere, seedlings sitting in soggy bottoms, and roots already circling before the plants are even ready to move outside.
Click here to download STL (Affiliate Link)
Most seed-starting systems are designed to be cheap and disposable, not to actually support strong early plant development.
These deep cell plug trays were designed to change that.
Instead of shallow cups and messy watering, they create a controlled, clean growing environment that promotes healthy root growth, proper drainage, and easy transplanting — all in reusable modular sizes that scale from small test batches to larger planting runs.
Whether you’re starting a few peppers or filling a full shelf with seedlings, the 2×3, 2×5, and 3×5 trays provide the same optimized growing conditions in flexible footprints.
What It Is & How It Works

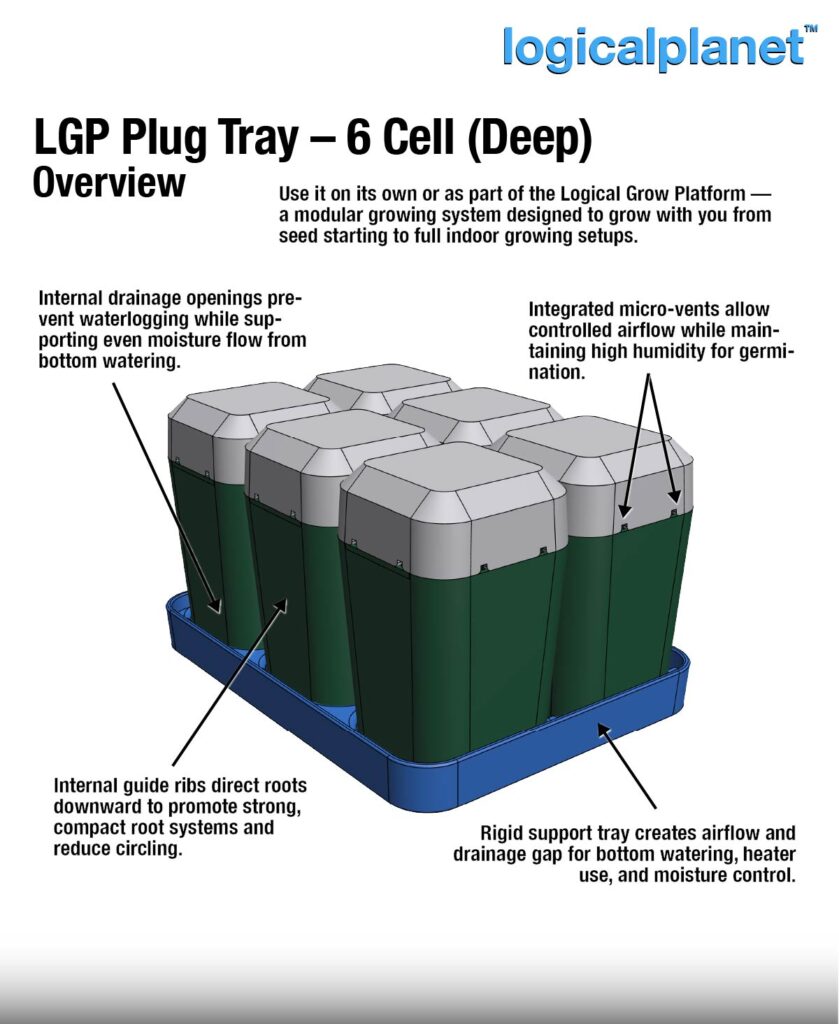

Each plug tray is built as a complete propagation system focused on moisture control, airflow, and root health.
Deep growing cells give seedlings room to develop strong early root systems while maintaining excellent drainage. A translucent humidity dome traps warmth and moisture during germination, while built-in micro-vent spaces allow controlled airflow to prevent stagnant conditions.
The cells sit in a raised propagation tray that creates an airflow and drainage gap underneath. This enables clean bottom watering, prevents water buildup, and works perfectly with seed heat mats for faster germination.
Together, these elements form a compact micro-environment that encourages quicker sprouting, healthier growth, and far less mess.

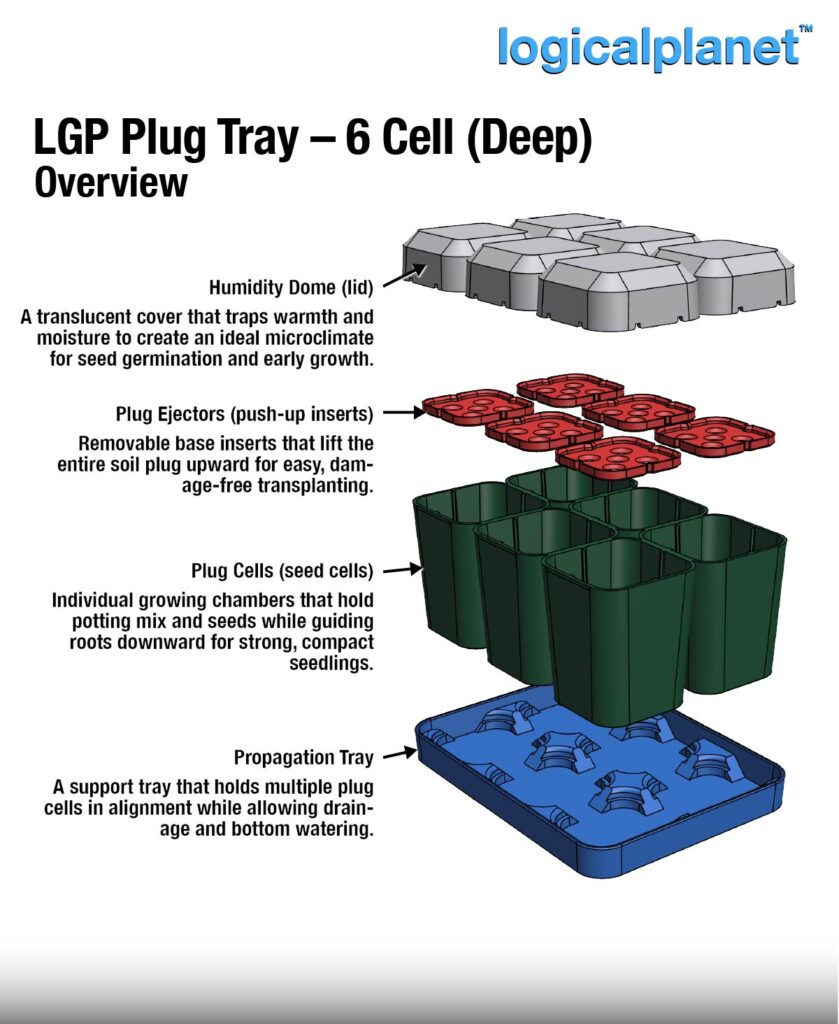

Key Parts & Mechanisms
Each tray size uses the same thoughtfully engineered components:
Deep Plug Cells
Tall growing chambers with internal root-guiding ribs that direct roots downward rather than spiraling, creating dense, compact root plugs that transplant cleanly.
Push-Up Ejectors
Removable bases inside each cell allow the entire soil plug and plant to be lifted out gently — no pulling or root damage. Drainage holes in the ejectors prevent oversaturation and support bottom watering.
Raised Propagation Tray
A rigid support tray that holds the cells aligned while creating airflow and drainage underneath to keep roots healthy and soil properly aerated.
Humidity Dome
A translucent cover that maintains high humidity for germination while passive vent spaces provide controlled airflow for healthier early growth.
Size & Dimensions
The deep cell plug trays are available in three modular formats:

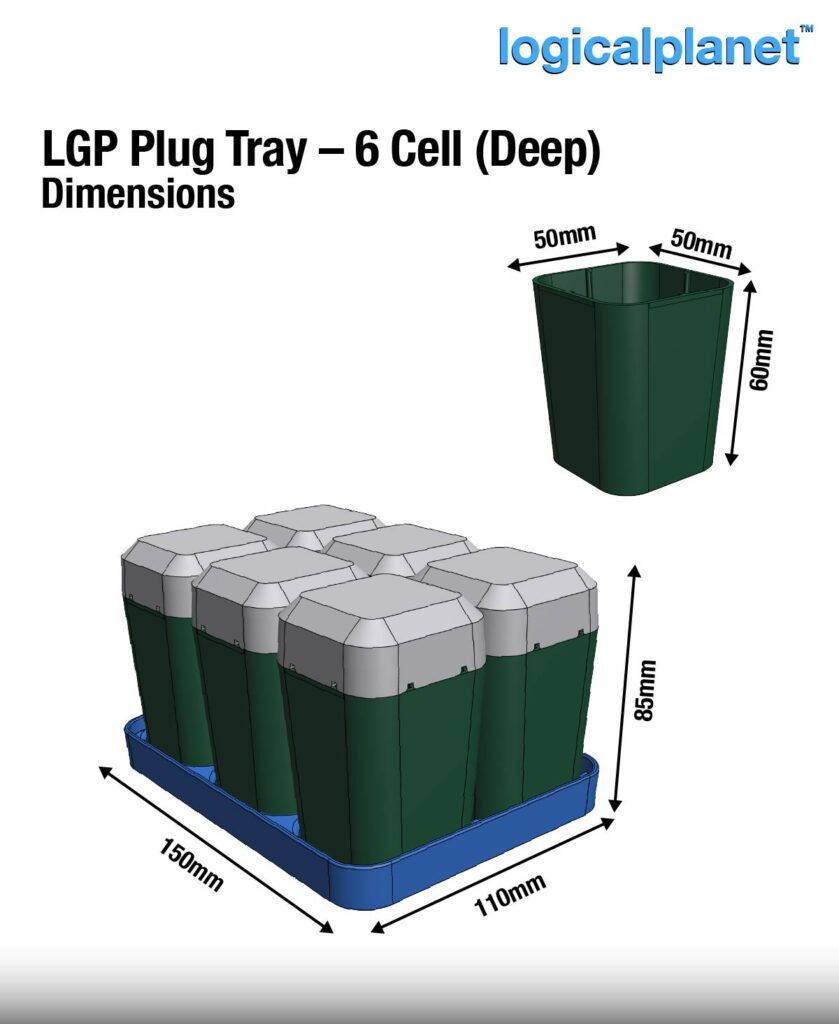

2×3 Tray — 6 cells
Great for small batches, specialty seeds, or limited space.

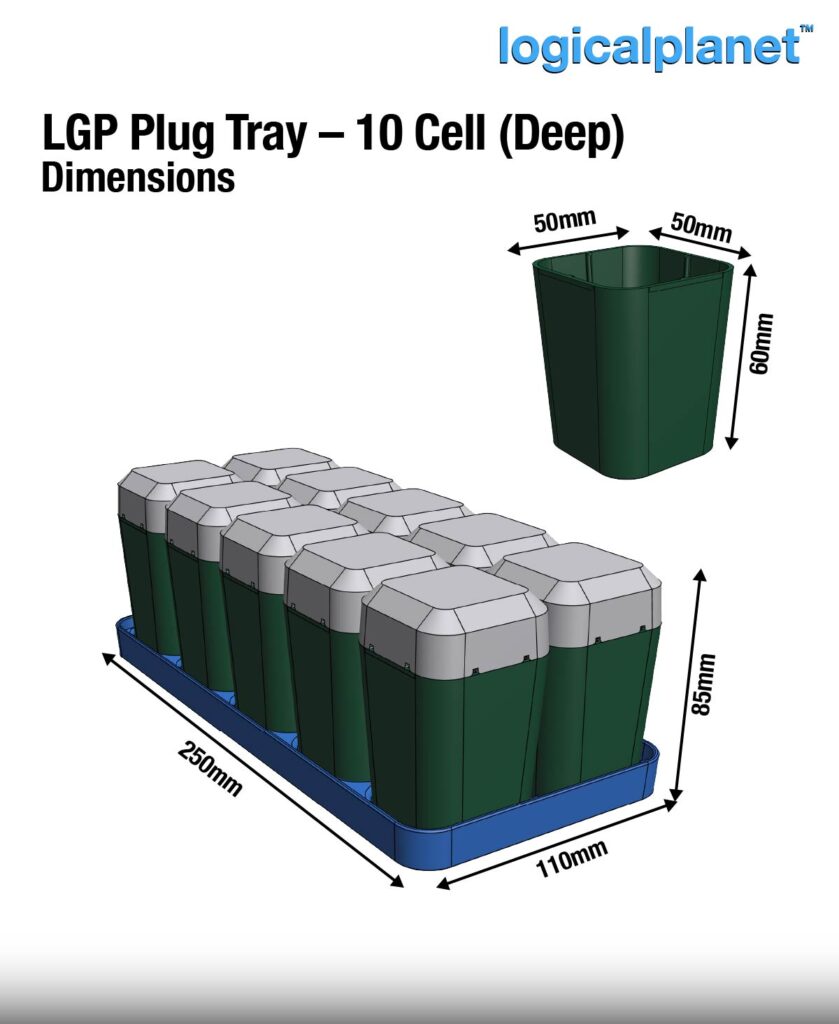

2×5 Tray — 10 cells
A balanced size for moderate planting runs.

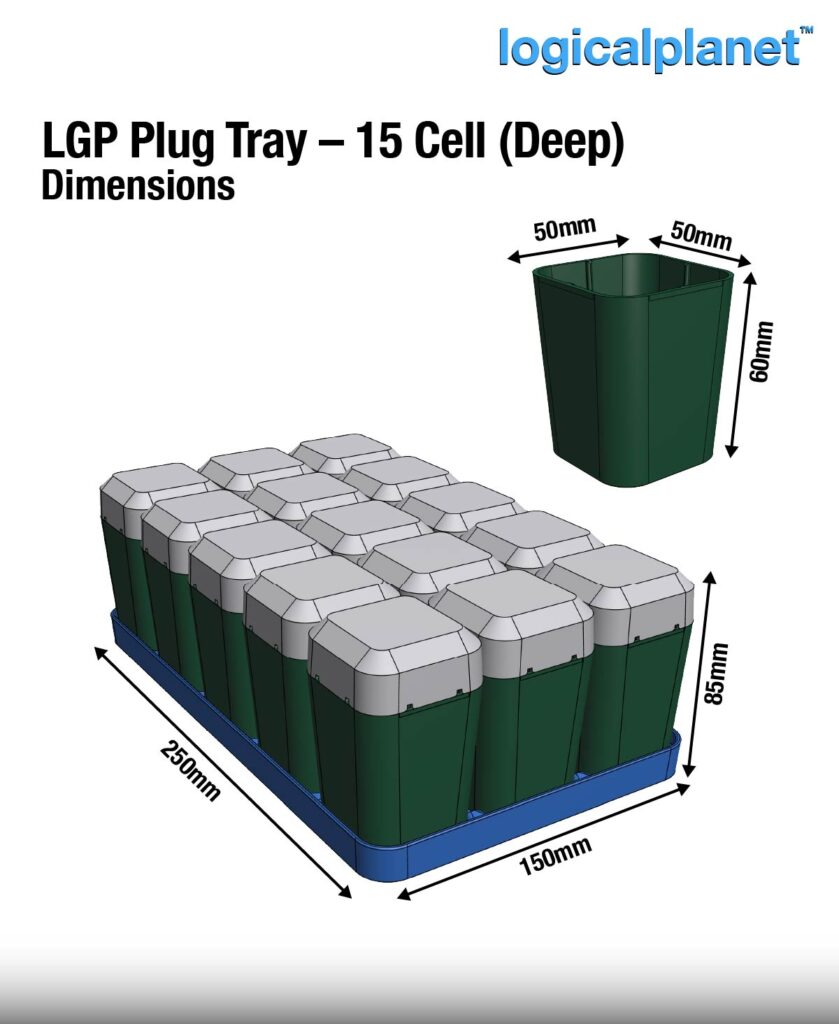

3×5 Tray — 15 cells
Ideal for larger starts when prepping full gardens.

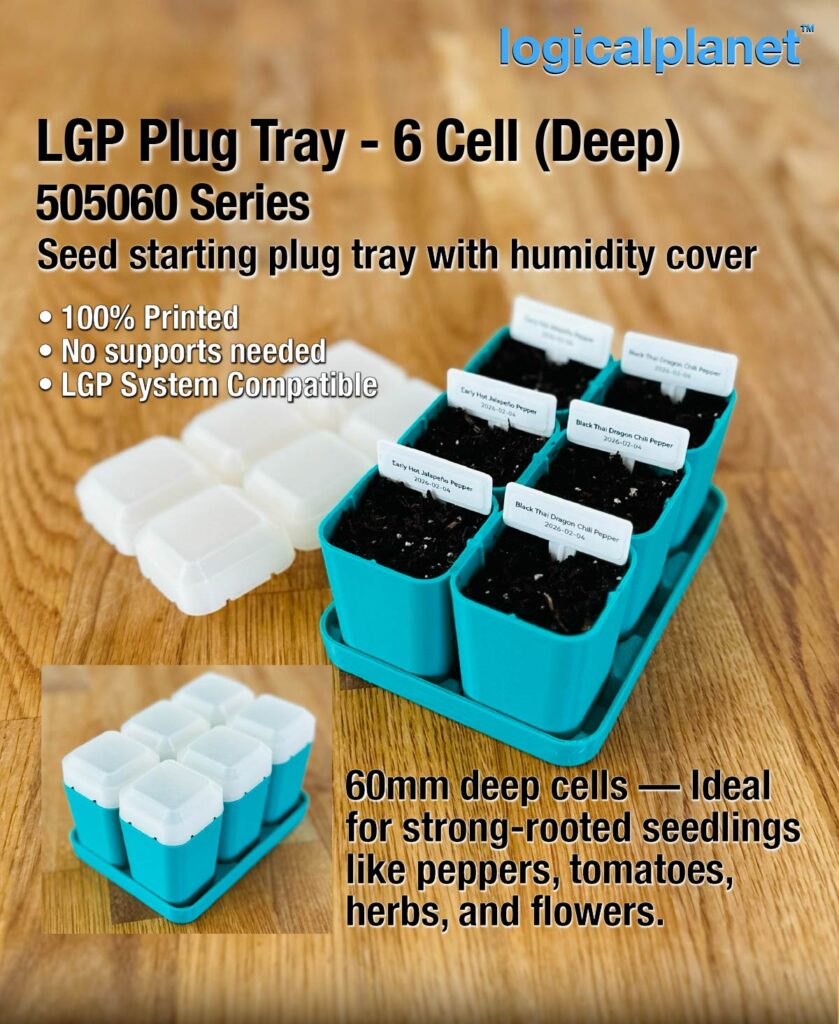

Each cell features approximately 60mm of growing depth, making them especially well suited for:
• peppers and tomatoes
• herbs and flowers
• seedlings that benefit from strong root systems
The deeper design allows plants to remain in the trays longer before transplanting while building healthier roots than shallow starter trays.

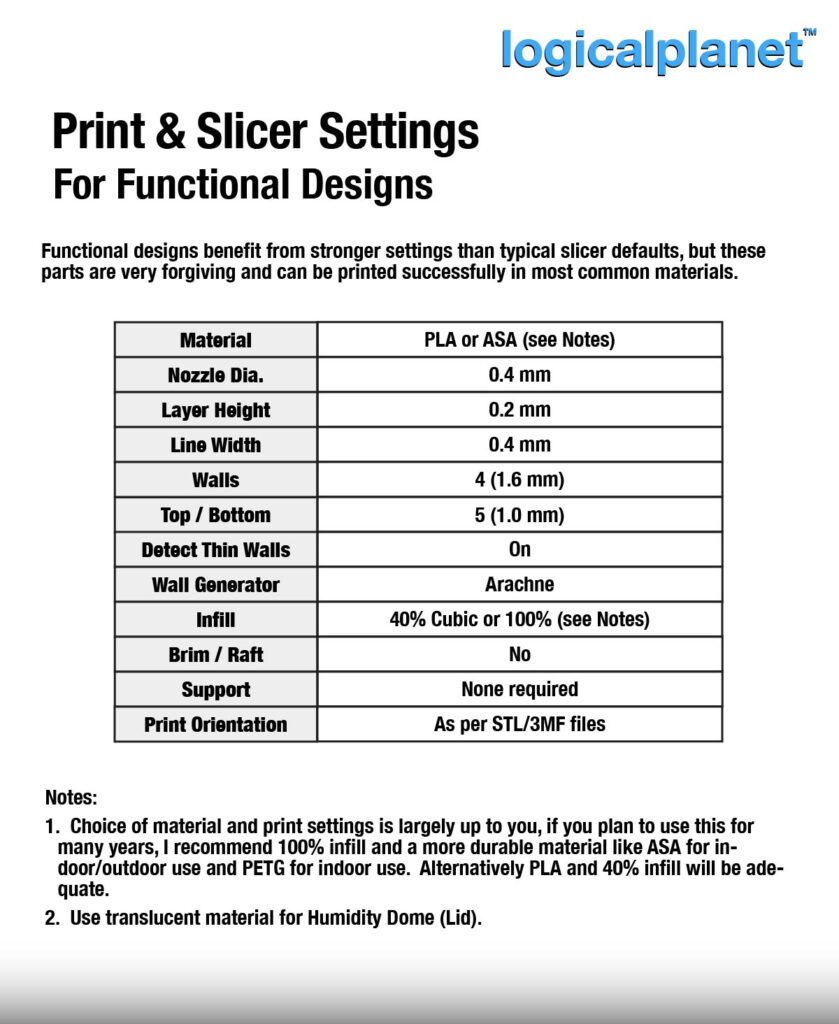

Printing Notes & Recommended Settings
All components are designed to print easily using common filaments and standard slicer settings.
PLA works perfectly for indoor growing. For longer-term durability or higher humidity environments, PETG or ASA are excellent options.
Recommended baseline settings:
• 0.4mm nozzle
• 0.2mm layer height
• 4 walls
• 5 top/bottom layers
• 30–40% infill
• No supports required
The geometry is forgiving and optimized for strong, clean prints.
Post-Print Setup & Motion Release
Very little post-processing is required.
After printing:
• Gently flex each ejector base to ensure smooth movement
• Clear any minor stringing around drainage holes
• Test the push-up action once or twice
Once done, the trays are ready to fill and plant.
Assembly (If Required)
No assembly is required.
The plug cells drop directly into the propagation tray, ejectors slide into place, and the humidity dome rests on top.
Everything is designed as a simple modular drop-in system for easy cleaning and long-term reuse.
Everyday Use & Operation
The workflow is clean and straightforward:
• Pre-moisten potting mix

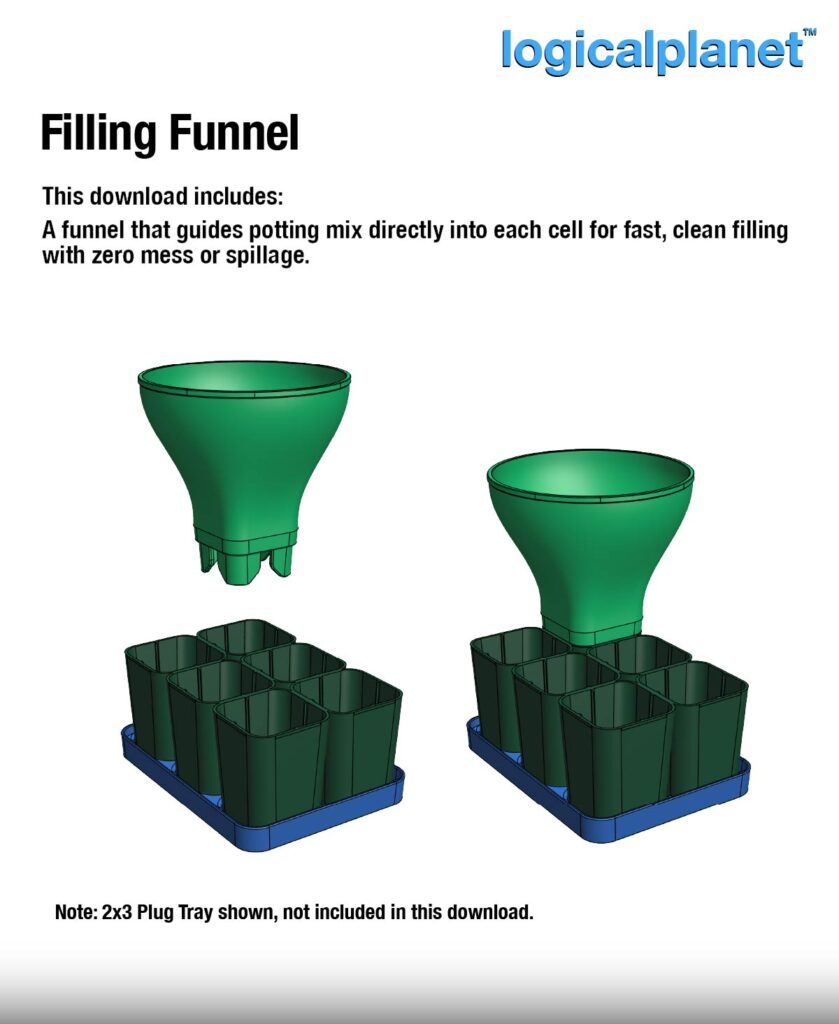

• Fill each cell (a single-cell soil funnel is included for mess-free filling)
• Sow seeds and lightly cover
• Place the humidity dome on top for germination
• Bottom water as needed
• Remove dome once seedlings emerge
• Push up ejectors to transplant cleanly when ready

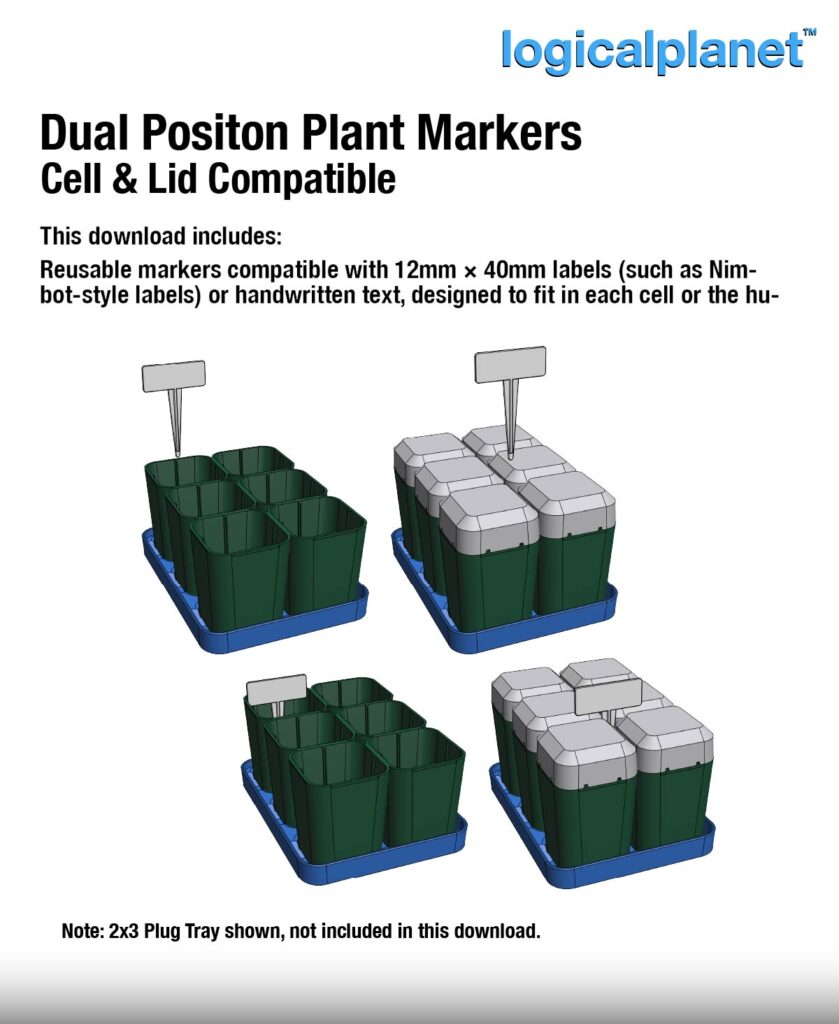

Reusable plant markers designed for standard 12mm × 40mm labels (such as Nimbot-style labels) — or simple handwritten notes — make tracking varieties easy throughout the growing process.
Everything stays organized, clean, and frustration-free.
Why This Design Exists
These plug trays were created to replace disposable seed starters with a reusable, well-engineered system that actually supports plant health.
Instead of dealing with warped plastic, soggy soil, and weak roots, the focus is on:
• controlled moisture
• healthy airflow
• strong root structure
• clean transplanting
• modular scalability
They also form the foundation of a larger modular growing ecosystem that will continue to expand over time — allowing seed starting to integrate seamlessly into larger indoor growing setups.
For now, these trays offer a simple, professional-grade way to start stronger plants at home.
